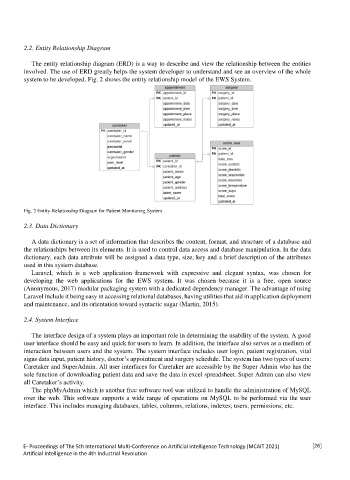

2.2. Entity Relationship Diagram

The entity relationship diagram (ERD) is a way to describe and view the relationship between the entities
involved. The use of ERD greatly helps the system developer to understand and see an overview of the whole
system to be developed. Fig. 2 shows the entity relationship model of the EWS System.

Fig. 2 Entity-Relationship Diagram for Patient Monitoring System

2.3. Data Dictionary

A data dictionary is a set of information that describes the content, format, and structure of a database and
the relationships between its elements. It is used to control data access and database manipulation. In the data
dictionary, each data attribute will be assigned a data type, size, key and a brief description of the attributes
used in this system database.
Laravel, which is a web application framework with expressive and elegant syntax, was chosen for
developing the web applications for the EWS system. It was chosen because it is a free, open source
(Anonymous, 2017) modular packaging system with a dedicated dependency manager. The advantage of using
Laravel include it being easy in accessing relational databases, having utilities that aid in application deployment
and maintenance, and its orientation toward syntactic sugar (Martin, 2015).

2.4. System Interface

The interface design of a system plays an important role in determining the usability of the system. A good
user interface should be easy and quick for users to learn. In addition, the interface also serves as a medium of
interaction between users and the system. The system interface includes user login, patient registration, vital
signs data input, patient history, doctor’s appointment and surgery schedule. The system has two types of users:
Caretaker and SuperAdmin. All user interfaces for Caretaker are accessible by the Super Admin who has the
sole function of downloading patient data and save the data in excel spreadsheet. Super Admin can also view
all Caretaker’s activity.
The phpMyAdmin which is another free software tool was utilized to handle the administration of MySQL
over the web. This software supports a wide range of operations on MySQL to be performed via the user
interface. This includes managing databases, tables, columns, relations, indexes, users, permissions, etc.
